A Quick Start Guide to Finding Floor Graphics

What Are Floor Graphics — and How Do You Find the Right One?

Floor graphics are adhesive vinyl decals printed with full-color designs and applied directly to floor surfaces for branding, wayfinding, safety signage, or promotional messaging in commercial and institutional settings.

Here is a quick overview to help you find the right floor graphic for your facility:

What You Need	Best Option
Short-term event or tournament signage	3 mil vinyl, 1–3 month rating
Seasonal branding or multi-month campaigns	8 mil vinyl, 6–12 month rating
Heavy athletic foot traffic	12 mil laminate, heavy-duty anti-slip
Single-step installation without laminate	Monomeric PVC film (e.g., 8 mil, 6-month indoor)
Coverage over existing permanent court logos	Silver blockout backing vinyl
Safety compliance in public facilities	UL 410 or DIN 51130 R-10 certified materials

Floor graphics are available in sizes ranging from 1′ x 1′ all the way up to 75′ long, and they can be applied to surfaces like polished concrete, VCT tile, sealed hardwood, and synthetic sports floors. The right material depends on three things: how long you need it to last, how much foot traffic it will see, and what surface it goes on.

I’m Chase Stalford, and through nearly two decades working on athletic floors at The Final Floor, I’ve seen how the wrong floor graphics choice can compromise both a facility’s appearance and its surface finish. In the sections below, I’ll walk you through everything you need to make a confident, informed decision.

Types and Material Options for Commercial Floor Graphics

When selecting floor graphics for commercial athletic facilities, indoor arenas, and educational complexes, choosing the right material composition is essential. A decal designed for a quiet hallway will quickly degrade if placed on a main gymnasium court during a weekend tournament. Commercial floor graphic materials generally consist of a print vinyl base layer, an adhesive backing, and a textured protective overlaminate.

To match the right material to your project requirements, consider this comparison of standard commercial options:

Graphic Option	Base Vinyl Thickness	Protective Overlaminate	Longevity Rating	Ideal Facility Application
Short-Term Promotional	3 mil monomeric vinyl	3 mil matte textured laminate	1 to 3 months	Weekend athletic tournaments, short seasonal promotions, event wayfinding
Mid-Term Commercial	3 mil to 8 mil vinyl	7 mil to 8 mil textured laminate	6 to 12 months	Seasonal collegiate schedules, conference branding, multi-month league campaigns
Heavy-Duty Athletic	12 mil to 13 mil semi-rigid vinyl	Integrated heavy-duty anti-slip coating	Up to 18–24 months	High-impact gymnasium entryways, spectator concourses, weight rooms
Direct-Print Monomeric	8 mil (200µ) monomeric PVC	None required (embossed non-slip surface)	Up to 6 months	Rapid-turnaround events, temporary court border decals, exhibition halls
Silver Blockout Overlay	3 mil opaque backed vinyl	3 mil to 7 mil slip-resistant laminate	Variable (1 to 12 months)	Temporarily covering permanent court graphics, sponsor updates over existing logos

Understanding total thickness—measured in mils (thousandths of an inch)—helps ensure your graphics resist premature peeling or scuffing. While standard base films measure roughly 3 mil thick, heavy-duty applications pair a 3 mil base film with a thick 7 mil or 12 mil protective laminate. This multi-layer construction shields printed graphics against foot traffic, rubber soles, and equipment rolling across the surface.

Another key material feature for multipurpose athletic centers is silver blockout backing. When hosting regional athletic tournaments or special broadcast games, facility managers often need to mask existing permanent center-court logos or sponsor branding. Silver-backed vinyl graphics incorporate an opaque layer that completely blocks underlying graphics, preventing dark paint or lines from bleeding through the temporary decal.

Short-Term vs. Long-Term Athletic Court Decals

The primary distinction between short-term and long-term athletic court decals lies in the formulation of the vinyl base and the aggressiveness of the adhesive system.

Short-Term Decals (1 to 3 Months): Short-term decals typically utilize monomeric vinyl paired with low-tack, pressure-sensitive acrylic adhesives. These materials are specifically designed for rapid application and clean removal without leaving sticky adhesive residue behind. They are ideal for high-school invitational tournaments, conference playoffs, trade expos hosted in indoor arenas, or short seasonal marketing campaigns.
Long-Term Decals (6 to 24 Months): Long-term graphic films utilize high-grade polymeric vinyl or semi-rigid 13 mil materials engineered to resist shrinkage and edge lifting over extended periods. Specialized long-term floor wraps (such as heavy-duty 8 mil or 12 mil materials) feature aggressive solvent adhesives designed to form a complete bond over 24 to 36 hours. In indoor facility areas with light pedestrian traffic, high-grade floor wraps can perform reliably for 2 to 3 years.

When managing high-performance athletic surfaces, ensuring clean removal at the end of a campaign is just as critical as the initial installation. Selecting low-tack, short-term vinyl for temporary events guarantees that when the tournament concludes, the decal peels off cleanly without damaging the underlying synthetic wear layer or wood court finish.

Heavy-Duty Materials and Slip-Resistant Laminates

In high-traffic zones—such as gymnasium entryways, locker room corridors, and arena concourses—standard promotional vinyl will quickly wear out. For these demanding spaces, heavy-duty floor graphics incorporating 12 mil textured laminates provide the necessary durability and wear resistance.

Heavy-duty laminates feature aggressive surface texturing engineered to absorb mechanical impact while maintaining a high coefficient of friction. This non-slip texture prevents shoes from sliding across the graphic, shielding the underlying CMYK print layer from direct abrasion, heel marks, and scratches caused by grit and dirt.

For detailed technical specifications on professional slip-resistant laminates, review the Avery Dennison DOL 5800 Floor Marking Technical Data Sheet. This 115-micron matte textured overlamination film provides up to 3 months of certified durability on indoor commercial floors, meeting European DIN 13036-4 standards for pendulum friction and slip safety.

Essential Surface Compatibility and Safety Certifications

Not all facility floors accept graphic adhesives in the same way. Matching your chosen vinyl and adhesive formula to your specific floor subfloor material is essential for both graphic adhesion and surface protection.

We routinely encounter several key commercial flooring types across athletic complexes, schools, and university buildings in Ohio, Indiana, Kentucky, and West Virginia:

Sealed Hardwood Courts (Maple): Hardwood athletic courts rely on protective polyurethane coats (either water-based or oil-modified). Graphics applied to basketball courts must use non-damaging, low-tack removable adhesives that adhere firmly during play without pulling up the floor finish during post-event removal.
Synthetic Sports Flooring: Polyurethane pad-and-pour systems, vulcanized rubber, and sheet vinyl sports floors feature slight surface elasticity. Graphics installed on synthetic floors require flexible vinyl films with pressure-sensitive adhesives that can handle minor floor compression under foot traffic.
Vinyl Composition Tile (VCT) & Linoleum: Highly common in school corridors and cafeteria spaces. Standard removable vinyl graphics bond exceptionally well to clean, waxed VCT surfaces and can handle routine foot traffic.
Polished and Sealed Concrete: Found in modern sports complexes, arena concourses, and lobby spaces. While unsealed concrete is porous and requires high-tack outdoor-grade vinyl, sealed concrete provides an ideal smooth surface for heavy-duty floor graphics. Note: Avoid applying ultra-aggressive high-tack long-term adhesives to sealed concrete, as aggressive adhesives can lift surface concrete sealers during removal.

Key Safety Standards for Gymnasium Floor Graphics

In educational and commercial athletic facilities, athlete safety and public compliance are non-negotiable. Applying smooth, non-rated vinyl to a walkway or playing surface creates a significant slip hazard. Facility managers must verify that all specified floor graphics carry recognized anti-slip and fire safety certifications.

The primary safety standards governing commercial floor decals include:

UL 410 (Standard for Slip Resistance of Floor Surface Materials): The benchmark safety standard in North America. UL 410 certification confirms that the floor graphic material and its protective overlaminate maintain safe static coefficient of friction levels under dry foot traffic, reducing the risk of slips and falls.
DIN 51130 R-10 Rating: A standard European ramp test metric evaluating slip resistance. An R-10 rating indicates that the textured graphic surface provides sufficient traction for public spaces, walkways, and sports facility corridors.
DIN 13036-4 / ASTM E303 (Pendulum Friction Testing): Standard test methods measuring surface friction under both wet and dry conditions, ensuring athletic footwear maintains traction during activity.
Class B1 / Class B Fire Ratings (CAN/ULC-S102 & EN 13501-01): Public building codes require interior decorative materials to meet strict flame-spread and smoke-development standards. Certified flame-retardant graphic media ensure compliance with local fire marshal standards.

Single-step graphic films offer an excellent example of certified safety engineering. To examine complete safety ratings and technical performance data, consult the SpotOn Floor 200 Non-Slip Graphic Specifications. This 8.0 mil (200µ) monomeric PVC film features a textured finish that eliminates the need for an overlaminate while achieving an R-10 slip rating and a Class B1 fire accreditation for short-term indoor applications.

Designing Custom Floor Graphics for High-Impact Branding

Creating visual impact with floor signage requires specific artwork preparation to ensure sharp detail, vibrant colors, and long-lasting performance. Unlike wall prints, floor graphics are viewed from overhead angles and subject to heavy visual foreshortening as pedestrians approach.

When setting up custom graphic artwork for production, adhere to these technical artwork guidelines:

Color Mode & Resolution: Always prepare print files in CMYK color space at a minimum resolution of 150 DPI for large format output (or 300 DPI for graphics smaller than 3′ x 3′).
Bleed & Safe Margins: Incorporate a minimum 1/8-inch (0.125″) or 1/16-inch bleed beyond the cut line. Keep critical text and logos at least 1/8 inch inside the trim perimeter to accommodate slight movement during high-speed plotting.
Vector Fonts & Outlines: Convert all text fonts to vector outlines and embed linked raster imagery to prevent font substitution errors during printing.
Custom Finishing Cuts: Choose the appropriate edge cut for your design aesthetic. Options range from standard square cuts and simple geometric shapes (circles, diamonds) to complex contour cuts (tracing exact logo perimeters) and cloud cuts (smooth rounded margins around intricate logos).
Color Contrast: Utilize bold, high-contrast graphics and matte overlaminates to minimize overhead ceiling light glare, making logos clearly readable from stadium bleachers or broadcast camera angles.

For a detailed look at visual layout guidelines and avoiding common graphic pitfalls on athletic courts, read our complete guide on How to Master Floor Graphic Design Without Tripping.

Installation, Maintenance, and Removal Best Practices

Proper installation and ongoing floor maintenance determine whether a decal lasts its full intended lifespan or fails within days. Even the highest-grade 12 mil heavy-duty graphic will peel prematurely if applied to a dirty, oily, or damp floor surface.

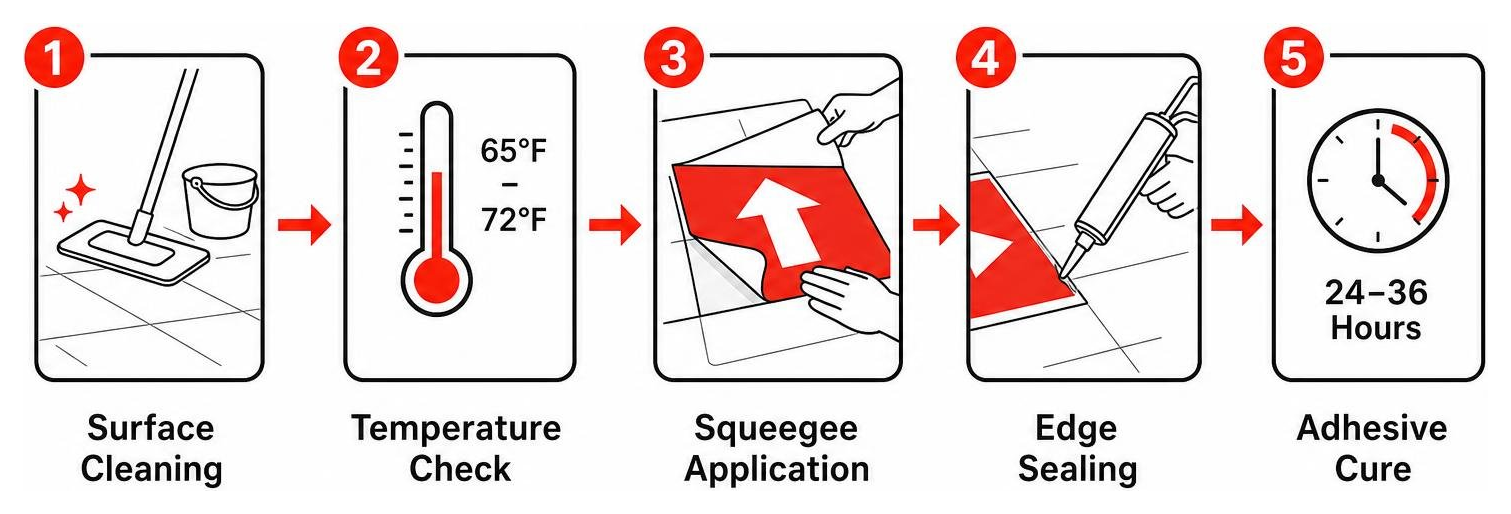

Follow this step-by-step workflow to achieve a seamless, long-lasting installation:

Thorough Surface Preparation: Sweep, vacuum, and wet-mop the target floor area using a neutral cleaner to remove dust, grit, floor wax build-up, and oily residues. Allow the surface to dry completely for at least 30 to 60 minutes. Moisture trapped beneath vinyl will ruin adhesive bonding.
Temperature Control: Verify ambient room and floor surface temperatures before application. Pressure-sensitive floor adhesives install best within a temperature range of 65°F to 72°F (with an acceptable operating threshold between 50°F and 90°F). Cold floors reduce initial adhesive tack.
Precision Application Technique: Position the graphic on the floor and secure one edge using painter’s tape to form a hinge. Peel back a portion of the release liner, expose the air-egress adhesive, and begin tacking the vinyl to the surface.
Firm Squeegee Pressure: Using a felt-edge squeegee or firm applicator pad, work slowly from the center outward toward the edges using overlapping strokes. Applying firm pressure activates the pressure-sensitive adhesive and forces out trapped air through built-in air-egress channels.
Adhesive Curing Time: Allow pressure-sensitive adhesives time to form a complete bond. Removable floor adhesives achieve full bonding strength within 24 to 36 hours post-installation. Avoid running automatic floor scrubbers directly across new graphics during this initial bond maturation window.

When maintaining facilities with floor decals, automated scrubbers and standard mops can safely clean waterproof, laminated floor graphics. However, janitorial staff must avoid using aggressive chemical strippers, solvent-based degreasers, or abrasive buffing pads directly over vinyl graphic perimeters.

When removing temporary graphics after an event, peel the decal slowly away from the floor surface at a 180-degree angle (folding the film flat back against itself) rather than pulling upward at a 90-degree angle. Pulling flat along the floor minimizes tension on the subfloor finish. If working with long-term graphics or aggressive adhesives on non-porous tile, gently applying heat with a heat gun softens the adhesive, allowing clean, residue-free removal.

To learn more about integrating ground-level branding into your overall facility layout, check out our insights on Floor and Wall Graphics: Don’t Get Floored by Bad Design.

Frequently Asked Questions About Commercial Floor Decals

How long do commercial floor graphics last under heavy athletic traffic?

The operational lifespan of commercial floor decals depends on material composition, foot traffic volume, and ambient facility conditions.

Short-term promotional graphics with 3 mil coatings typically last 1 to 3 months in busy corridors and court areas. Mid-range 8 mil films and 12 mil heavy-duty laminated materials provide 6 to 12 months of durability under high pedestrian foot traffic. In low-traffic indoor areas, premium floor wraps and heavy-duty vinyls can remain intact for 2 to 3 years.

For athletic surfaces subject to intense shoe scuffing and pivot movements, specifying heavy-duty anti-slip laminates ensures maximum graphic longevity.

Can floor graphics be scrubbed and waxed during routine facility cleaning?

Yes, provided the graphics carry a high-quality waterproof anti-slip overlaminate and are fully cured. UL-approved floor graphics feature waterproof protective coatings engineered to withstand routine janitorial care, including wet mopping, neutral cleaning solutions, and automated floor scrubbers.

Facility maintenance teams can clean, scrub, and wax over laminated floor graphics during standard floor maintenance routines. However, avoid using heavy solvent strippers, high-pH chemicals, or industrial rotary buffing brushes directly over the exposed edges of the vinyl film.

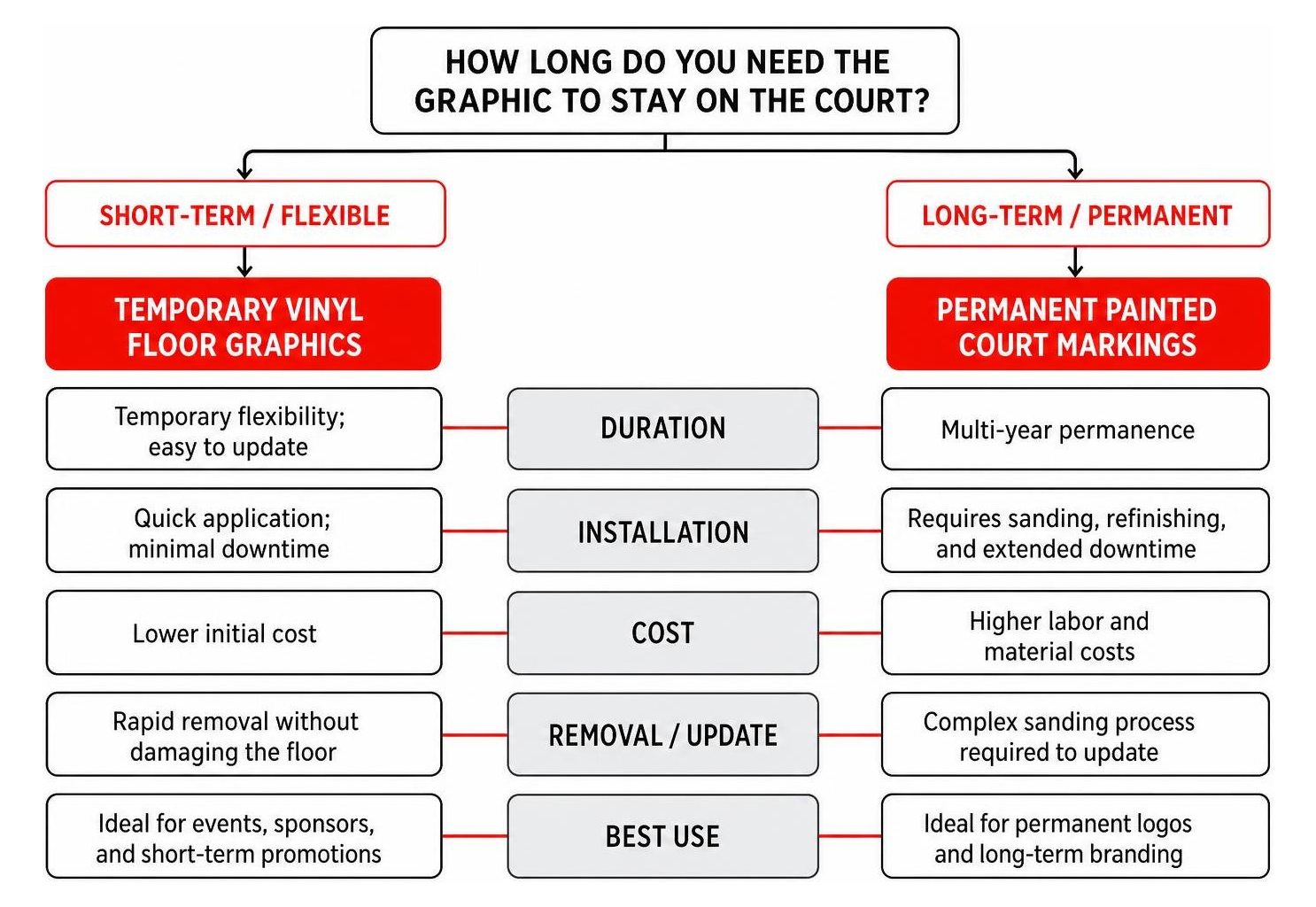

How do adhesive vinyl floor graphics compare to painted court graphics?

Choosing between temporary vinyl floor graphics and permanent painted court graphics depends on how long you need the visual branding to remain on the court.

Vinyl Floor Graphics: Provide temporary flexibility, quick application, lower initial cost, and rapid removal without damaging underlying floor finishes. They are perfect for seasonal sponsor updates, tournament logos, broadcast event branding, and short-term promotions.
Painted Court Graphics: Painted logos (applied using specialized game-line paints during court sanding and refinishing) offer a multi-year permanent lifespan. However, painted graphics require significant court downtime, higher labor costs, and complex sanding procedures when updates are required.

Vinyl decals allow athletic directors and facility managers to monetize court space with rotating sponsor graphics while preserving the long-term integrity of their permanent hardwood or synthetic floor system.

Conclusion

Commercial floor graphics offer a versatile, highly visible solution for transforming underutilized floor space into dynamic branding, navigational signage, and promotional real estate. By selecting certified slip-resistant materials, matching adhesives to your subfloor surface, and following established installation and maintenance best practices, you can enhance your facility’s aesthetic appeal while maintaining safe, high-performance athletic surfaces.
